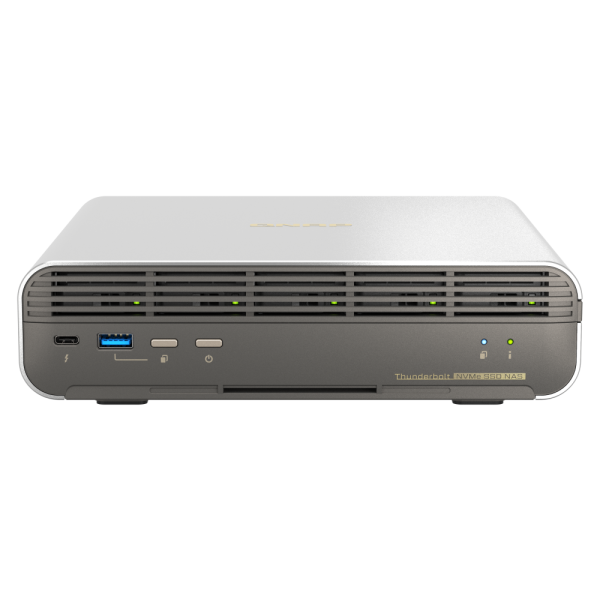

QNAP TBS-h574TX-i5U-16G | Thunderbolt 4 All-Flash NASbook

£2,335.00
  • Intel® Core™ hybrid-architecture CPU
  • Five E1.S/M.2 PCIe NVMe SSD slots; hot-swappable
  • 2x Thunderbolt™ 4, 1x 2.5GbE, 1x 10GbE, 2x USB 3.2 Gen 2 (10Gbps)
  • Hot-swappable E1.S SSDs allow instant replacement without downtime in the event of failure.
  • Optional E1.S to M.2 SSD adapter enables hot-swappable M.2 SSD installation. Supports up to five M.2 PCIe NVMe SSDs.
  • Two Thunderbolt™ 4 ports allow directly connecting Mac®/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.
  • Intel® Core™ processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.
  • 2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.
  • Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.
Availability: In stock
SKU
TBS-h574TX-i5U-16G

Intel® Core™ hybrid-architecture CPU Five E1.

QNAP TBS-h574TX-i5U-16G | Thunderbolt 4 All-Flash NASbook — Key specifications

CPU
Intel® Core™ i5-1235U, 10C (2P+8E)/12T, 4.4GHz
CPU Architecture
64-bit x86
System Memory
16 GB on board (non-expandable)
Maximum Memory
16 GB on board (non-expandable)
Drive Bay
5 x E1.S up to 15mm (5x PCIe Gen3 x2) Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility
E1.S or M.2 2280 PCIe NVMe Heatsinks of M.2 must not exceed a height of 4.5 mm
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
1
USB 3.2 Gen 2 (10Gbps) Port
2
Form Factor
Set-top design
Dimensions (HxWxD)
60 × 215 × 199 mm
Weight (Net)
2.24 kg
Power Consumption: Operating Mode, Typical
46 W
Standard Warranty
3

Intel® Core™ hybrid-architecture CPU Five E1.S/M.2 PCIe NVMe SSD slots; hot-swappable 2x Thunderbolt™ 4, 1x 2.5GbE, 1x 10GbE, 2x USB 3.2 Gen 2 (10Gbps) Hot-swappable E1.S SSDs allow instant replacement without downtime in the event of fa
